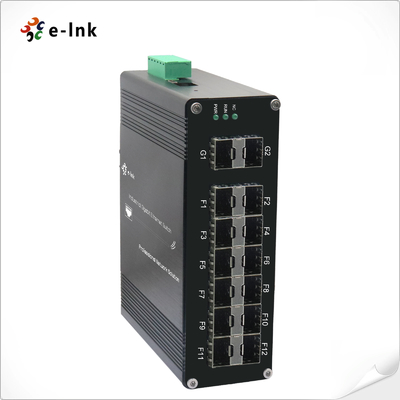

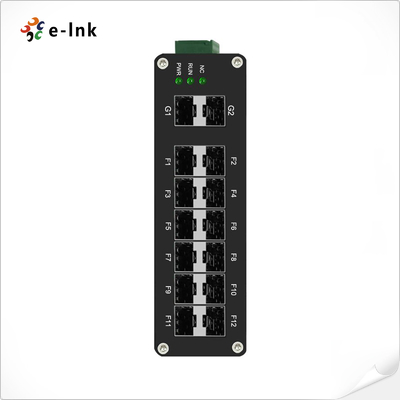

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
ETH-DIMC2012FM Managed Industrial 12-Port Ethernet Switch Overview
The ETH-DIMC2012FM Series is an industrial-grade, L2+ managed 14-port Gigabit SFP switch featuring
12x100/1000Base-X SFP ports + 2x1.25G SFP uplinks in a rugged IP40 enclosure with dual power inputs.
Engineered for extreme conditions (-40°C to 80°C), it delivers carrier-class reliability for harsh environments.
The product's advanced features include Layer 2-4 switching, QoS, network access control
and secure management. This makes it ideal for use in industrial automation, smart transportation
and mission-critical networks.
ETH-DIMC2012FM Managed Industrial 8-Port Ethernet Switch Features
- Supports 12×1000Base-X SFP ports and 2×1000Base-X SFP uplink ports
- DIP switch enables one-key VLAN and one-key ring network management
- USB-C port for simplified device management, eliminating the need for RS232 serial port access
- Supports 10K bytes jumbo frames for improved data transfer efficiency
- Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard for
- reduced power consumption
- IP40-rated aluminum housing for enhanced durability and protection
- DIN-rail mount design for convenient industrial installation
- Wide operating temperature range: -40°C to +80°C (-40°F to +176°F) for harsh environments
ETH-DIMC2012FM Managed Industrial 8-Port Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3u 100BASE-TX/100BASE-FX
|
|
IEEE 802.3ab Gigabit 1000T
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3x flow control and back pressure
|
|
IEEE 802.3ad port trunk with LACP
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.1Q VLAN tagging
|
|
IEEE 802.1X Port Authentication Network Control
|
|
IEEE 802.3u 100BASE-TX/100BASE-FX
|
|
Forward & Filtering Rate:
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
10K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Optical Port:
|
14 x 1000Base-X SFP
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
8W Max
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|

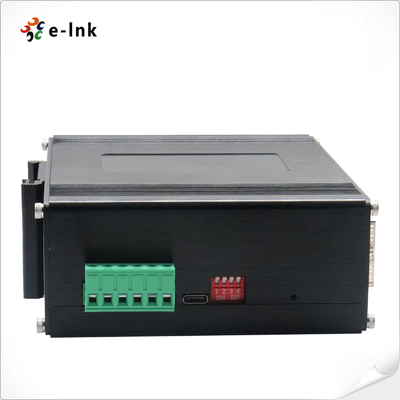

DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 4
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|

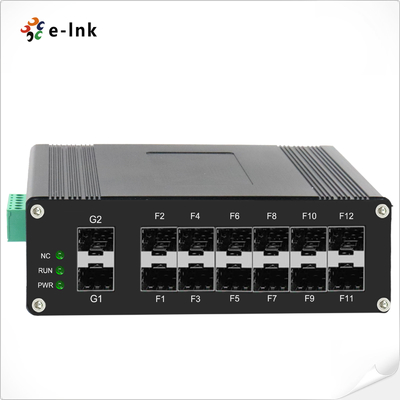

LED Indicators:
|
|
Power:
|
Power Status
|
|
Fiber:
|
100/1000X SFP Port: F1~F12
|
|
Fiber:
|
Gigabit SFP Port: G1~G2
|
|
Dimensions (WxDxH):
|
149 x 114 x 50 mm
|
|
Weight:
|
0.55Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
ETH-DIMC2012FM Managed Industrial 8-Port Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ETH-DIMC2012FM
|
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
ETH-DIMC2012FM Managed Industrial 8-Port Ethernet Switch Application
