Gigabit Industrial Switch 3xGigabit 1xSC Fiber With Voltage Booster 12-48VDC

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SC Ethernet Switch with 12~48VDC Input and Voltage Booster

Mini Industrial Solar Power PoE Switch Overview

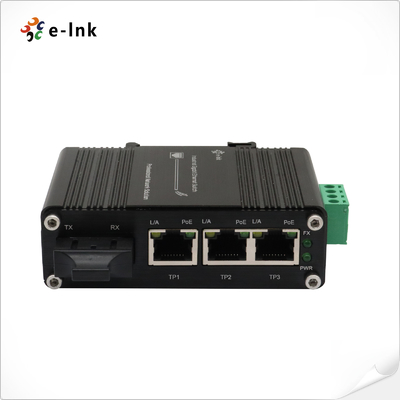

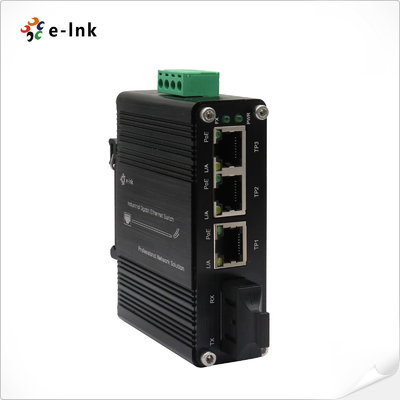

The LNK-IMC103GP Series is a compact, industrial-grade 4-port Gigabit Power over Ethernet switch

featuring 3 x 10/100/1000BASE-T Power over Ethernet ports (802.3at, 30W each)

and 1 x 1000BASE-X single-mode fibre port. Engineered for challenging environments,

 it offers wide voltage input (12-48VDC) with voltage booster, making it ideal for solar power systems,

industrial automation, and outdoor applications. The durable IP40 aluminium housing offers

exceptional resilience against extreme temperatures (-40°C to 75°C), vibrations, and shocks,

while adhering to CE/FCC standards. With a 90W total PoE budget, plug-and-play functionality,

and 100% burn-in testing, it delivers reliable, cost-effective industrial-strength networking for demanding environments.

Mini Industrial Solar Power PoE Switch Features

LNK-IMC103GP-SFP present the following features:

► 3 x 10/100/1000BASE-T RJ45 ports (ports 1-3 support IEEE 802.3at PoE+ power supply, automatic MDI/MDI-X switching)

► 1×1000Base-X SC optical port , suitable for high-speed optical fiber transmission

► Wide range 12~48VDC power input , built-in power boost function

► PoE power budget : 90W (48VDC), 90W (24VDC), 60W (12VDC)

► Full/half duplex self-adaptation , support automatic negotiation, and ensure efficient transmission

► Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption

► IP40 aluminum alloy housing , durable and strong anti-interference performance

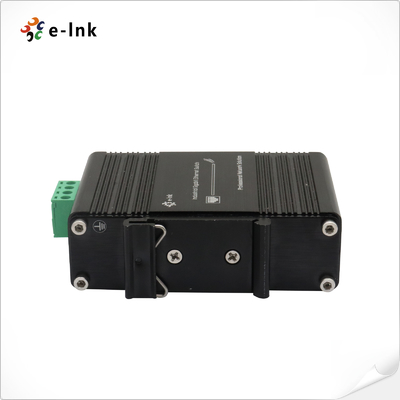

► Supports DIN rail and wall mounting for flexible deployment

► Industrial grade wide temperature design -40°C to 75°C, suitable for harsh environments

Mini Industrial Solar Power PoE Switch Technical Indexes

Mini Industrial Solar Power PoE Switch Ordering Information

Mini Industrial Solar Power PoE Switch Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go

to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
