8 Port Gigabit + 4 SFP Industrial Switch Fanless, Rugged Metal Housing

Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

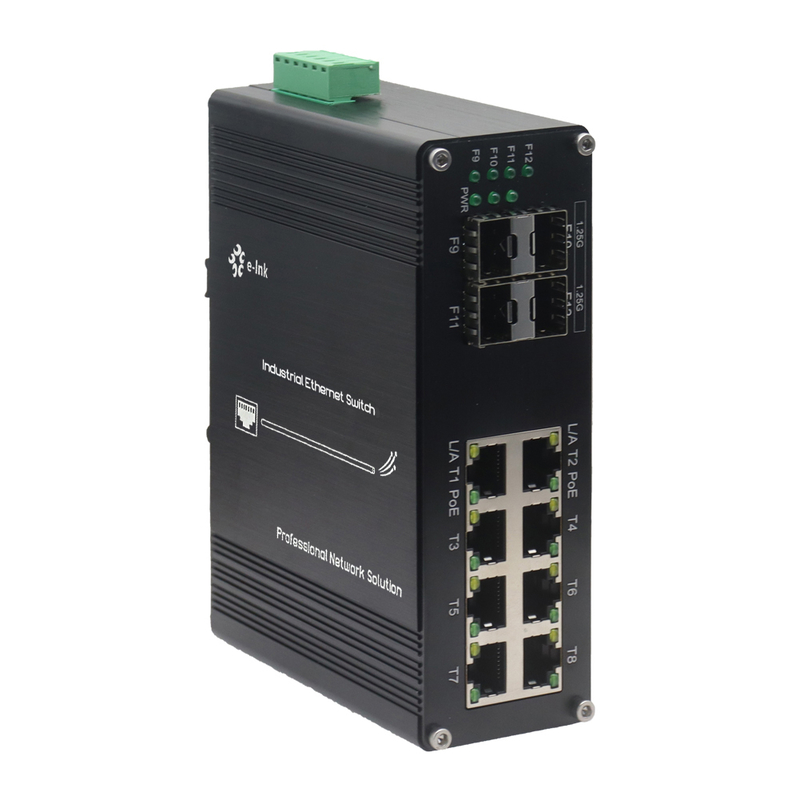

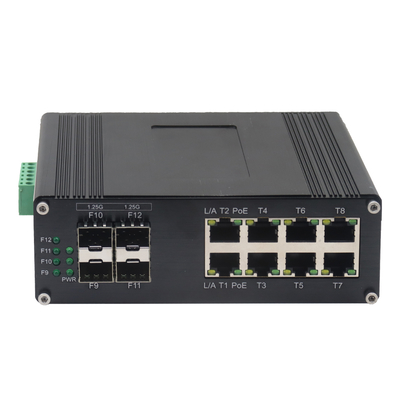

LNK-IMC408G Industrial 8-Port Ethernet Switch Overview

The LNK-IMC408G Series is an industrial-grade managed Ethernet switch with 8- 10/100/1000Base-T RJ45 ports

and 4- 1000Base-X SFP slots, designed for harsh environments.

With 8x 10/100/1000Base-T RJ45 ports featuring auto-negotiation and 4x 1000Base-X SFP slots

supporting single/multi-mode fibre, it provides a reliable, high-speed network connection for industrial applications.

Its key features include a wide operating temperature range of -40°C to 75°C, DIN-rail mounting,

du

al DC power inputs of 12–48 V, and an IP40-rated rugged metal housing, making it ideal for factory automation,

IP surveillance, and outdoor deployments. With advanced QoS, VLAN and network management capabilities,

this switch ensures stable data transmission in mission-critical environments.

LNK-IMC408G Industrial 8-Port Ethernet Switch Features

► High-Performance Ports – Supports 8×10/100/1000Base-T RJ45 ports and 4×1000Base-X SFP fiber ports for versatile networking.

► Advanced RJ45 Functionality – 10/100/1000Mbps RJ45 ports with full/half-duplex, auto-negotiation, and auto MDI/MDIX support.

► Energy Efficiency – Compliant with IEEE 802.3az Energy-Efficient Ethernet (EEE) to reduce power consumption.

► Rugged Industrial Housing – IP40-rated aluminum case for enhanced durability in harsh environments.

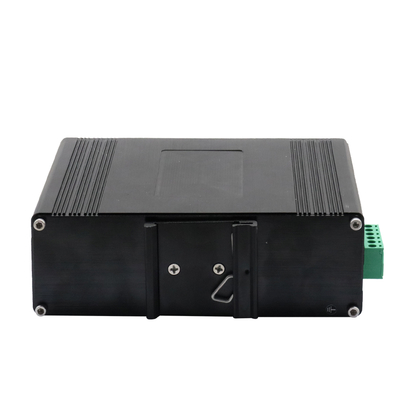

► Flexible Mounting – Supports DIN-rail installation for easy integration into industrial control cabinets.

► Wide Voltage Range – 12–48V DC power input for stable operation in diverse industrial settings.

► Low Power Consumption – Maximum power consumption of only 8W for efficient operation.

► Compact and Lightweight – Dimensions: 149 × 114 × 50 mm; Weight: 0.55 kg for space-saving installation.

► Extreme Temperature Tolerance – Reliable operation from -40°C to +80°C (-40°F to +176°F).
