Industrial 4-Port 802.3bt 90W PoE++ + 2-Port SFP Hardened Gigabit Switch

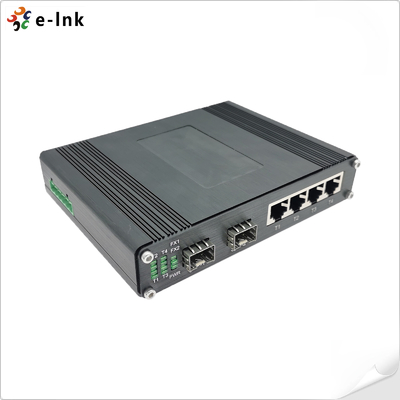

Grote Afbeelding : Industrial 4-Port 802.3bt 90W PoE++ + 2-Port SFP Hardened Gigabit Switch

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	E-link
Certificering:	CE, RoHS, FCC, ISO9001
Modelnummer:	LNK-IMC204GP90
Document:	E-link LNK-IMC204GP90 Serie....1.pdf

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 pc's
Prijs:	$110-$149
Verpakking Details:	Industrial Ethernet Poe Switch Standard Export -pakket
Levertijd:	5-12 werkdagen
Betalingscondities:	T/T, Western Union, MoneyGram, PayPal, creditcard
Levering vermogen:	1000 stcs/maand

Contact

Gedetailleerde productomschrijving

Haven:	4 × 10/100/1000BASE-T RJ45 (POE ++), 2 × 100/1000Base-X Fiber	Power Input:	48–57vdc, redundant terminalblok
Huisvesting:	Robuuste aluminium behuizing	Montage:	Din-rail / wandmontage
Afmetingen:	150 × 115 × 30 mm	Certificeringen:	ISO9001, EN55022, IEC61000-4-2/3/4/5/5/6/8
Markeren:	Industrial 4-Port PoE++ switch , Hardened Gigabit Ethernet switch , 90W PoE++ SFP switch

Industrial 4-Port 802.3bt 90W PoE++ + 2-Port SFP Hardened Gigabit Switch

Overview

The LNK-IMC204GP90 Series is a compact yet powerful industrial-grade PoE++ switch,

designed to deliver up to 90W per port for high-power devices such as PTZ cameras,

wireless access points, and industrial IoT equipment. With dual 100/1000Base-X fiber ports,

wide operating temperature, and redundant power design, it ensures reliable, high-speed

networking in mission-critical environments.

Features

High-Power PoE++ – Supports IEEE 802.3bt, up to 90W per port (360W total)

Flexible Fiber Uplink – 2× 100/1000Base-X (SFP/SC/FC/ST optional)

Rugged Design – Aluminum housing, -40°C to 80°C wide temperature range

Reliable Operation – Redundant 48–57VDC power inputs with overload protection

Enhanced Performance – 9K jumbo frames, 1Mbit buffer, store-and-forward switching

Easy Deployment – DIN-Rail / Wall-mount installation for industrial settings

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes
Address Table Size:	2048 MAC Addresses
Interface
Connector:	4 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57V DC, Redundant Power (6-pin Terminal Block)
Power Consumption:	360W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at/bt
PoE:
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	90W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
SFP:	FX1, FX2
Dimensions (WxDxH):	150 x 115 x 30 mm
Weight:	0.5Kg
Casing:	Aluminum Case

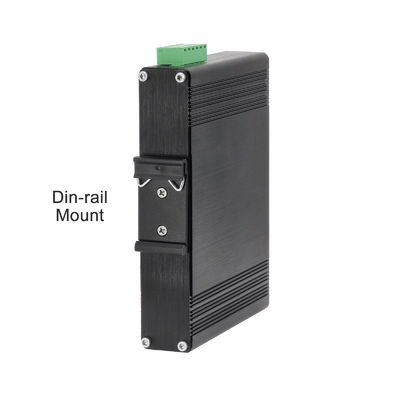

Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC204GP90	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC204GP90-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC204GPS90-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC204GPF90-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC204GP90-SFP	Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
