Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch

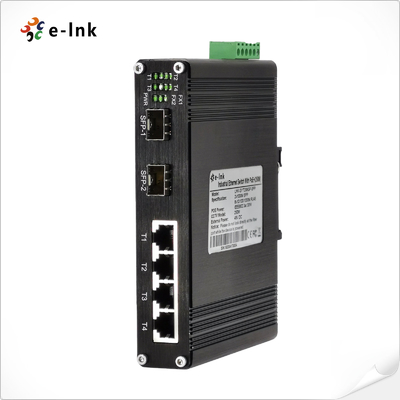

Grote Afbeelding : Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	E-link
Certificering:	CE, RoHS, FCC, ISO9001
Modelnummer:	LNK-IMC204GP60
Document:	E-link LNK-IMC204GP60 Serie....1.pdf

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 pc's
Prijs:	$100-$139
Verpakking Details:	Industrial Ethernet Poe Switch Standard Export -pakket
Levertijd:	5-12 werkdagen
Betalingscondities:	T/T, Western Union, MoneyGram, PayPal, creditcard
Levering vermogen:	1000 stcs/maand

Contact

Gedetailleerde productomschrijving

Ethernet -poorten:	4 × 10/100/1000Base-T RJ45	Vezelpoorten:	2 × 100/1000BASE-X (SFP/SC/FC/ST OPTIONAAL)
Poe Standard:	IEEE802.3AF/AT/BT (60W max per poort)	Power Input:	48 ~ 57VDC, overbodig (6-pins terminalblok)
Operationele temp:	-40°C ~ +80°C	Afmetingen:	150 × 115 × 30 mm; Gewicht: 0,5 kg
Markeren:	4-port Gigabit PoE++ industrial switch , 802.3bt PoE fiber switch , industrial Ethernet switch with fiber ports

Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch

Overview

The LNK-IMC204GP60 Series is a rugged industrial PoE++ switch designed for harsh

environments. Featuring 4 Gigabit RJ45 ports with up to 60W PoE per port and 2 dual-speed

fiber uplinks, it delivers both power and high-speed data to IP cameras, wireless APs, and

other demanding devices. With wide temperature tolerance, redundant power inputs, and

flexible mounting, it ensures reliable and efficient networking for industrial and remote

deployments.

Features

High Power PoE++ – Up to 60W per port, ideal for PTZ cameras & APs

Dual Fiber Uplinks – 100/1000Base-X with SFP/SC/FC/ST options

Rugged Design – Operates from -40°C to 80°C in harsh conditions

Redundant Power – 48~57VDC inputs with overload & polarity protection

Energy Efficient – IEEE 802.3az support for optimized power usage

Flexible Mounting – Compact aluminum case for DIN-Rail or wall installation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes
Address Table Size:	2048 MAC Addresses
Interface
Connector:	4 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	240W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at/bt
PoE:
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	60W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
SFP:	FX1, FX2

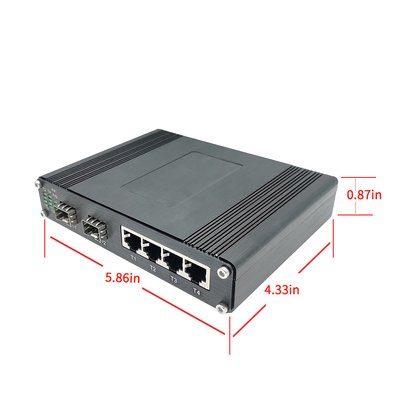

Dimensions (WxDxH):	150 x 115 x 30 mm
Weight:	0.5Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC204GP60	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC204GP60-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC204GPS60-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC204GPF60-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC204GP60-SFP	Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
