HDMI Fiber Extender with Bidirectional Audio & RS232 up to 1920×1200@60Hz 20km

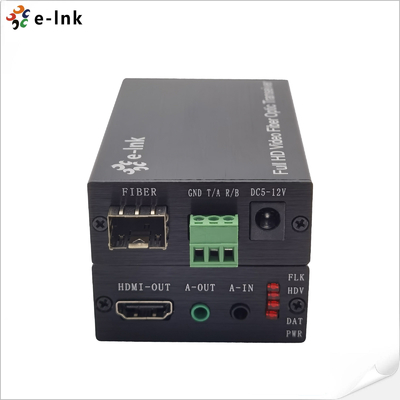

Grote Afbeelding : HDMI Fiber Extender with Bidirectional Audio & RS232 up to 1920×1200@60Hz 20km

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	E-link
Certificering:	CE, RoHS, FCC, ISO9001
Modelnummer:	Lnk-HF100DA
Document:	1E-link Communication & Net...og.pdf

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 Paar
Prijs:	$85-$105
Verpakking Details:	HDMI over glasvezel extender standaard exportpakket
Levertijd:	5-12 werkdagen
Betalingscondities:	T/T
Levering vermogen:	1000 stcs/maand

Contact

Gedetailleerde productomschrijving

Videonorm:	HDMI 1.4b 3D, HDCP 1.4 compatibel	Maximale resolutie:	1920×1200@60Hz
Vezeltype:	Single-mode tot 20 km / Multi-mode tot 500 m, LC (SFP) connector	Stroomvoorziening:	Gelijkstroom 512V, maximaal stroomverbruik 4W
Bedrijfstemperatuur:	-20°C tot +70°C	Afmetingen:	92 × 57 × 23 mm
Markeren:	HDMI Fiber Extender , Bidirectional Audio Fiber Extender , 1920×1200@60Hz Fiber Extender

DMI Fiber Extender with Bidirectional Audio & RS232 up to 1920×1200@60Hz 20km

Overview

The HDMI Fiber Optic Extender transmits HDMI video, bidirectional stereo audio, and RS232

signals over a single fiber cable for distances up to 20km. Supporting resolutions up to

1920×1200@60Hz and compliant with HDMI 1.4b 3D and HDCP 1.4 standards, it ensures

high-quality, stable, and secure long-distance transmission. Designed for easy installation with

plug-and-play operation, it is ideal for applications in broadcasting, control centers, and

multimedia displays.

Features

Transmits HDMI, bidirectional stereo audio, and RS232 over a single fiber cable

Supports resolutions up to 1920×1200@60Hz, including 1600×1200@60Hz

Compatible with HDMI 1.4b 3D and HDCP 1.4 standards

Long-distance transmission up to 20km (single-mode) or 500m (multi-mode)

Built-in automatic adjustment and ESD protection for stable, clear images

Easy plug-and-play installation with high compatibility for source and display devices

Technical Indexes

Parameter		Description
Video	Standards	HDMI1.4B 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Compliant	1080P@50/59.95/60Hz,( Max 19201200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 16001200 @60HZ
	Connector	Female HDMI type A
	Impedance	100Ω
	HDMI Cable Range	<5Meter (Resolution up to 1920*1200@60Hz)
Audio	Interface	3.5MM external stereo audio
	Transmitter	1Ch Input + 1Ch Ouptut
	Receiver	1Ch Input + 1Ch Ouptut
RS232	Interface	3-Pin Terminal Block
RS232	Baud Rate	≤115200bps
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	850nm/1310nm/1550nm
	Interface bandwidth	3Gbps
	Transmission distance	Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km
IndexOther	Power supply	The power adapter: DC 5~12V
	Power dissipation	MAX 4W
	Temperature	Operating: -20℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	92 x 57 x 23 (mm)

Ordering Information

Model	Description
LNK-HF100DA	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
LNK-HF100DA-20	1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
