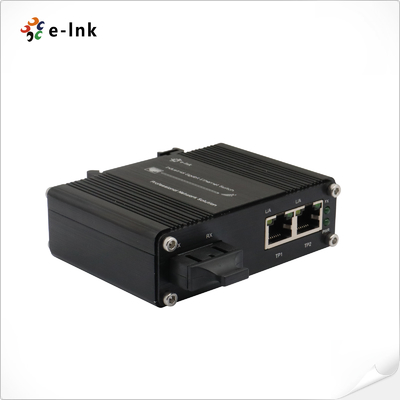

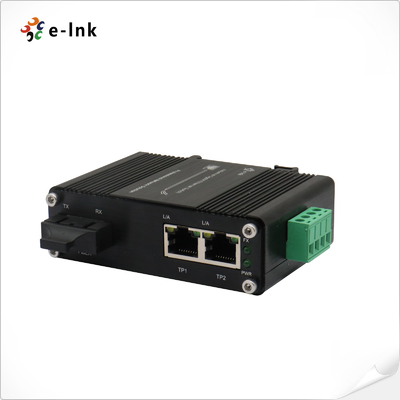

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial Media Converter Overview
The LNK-IMC1200G Series Industrial Gigabit Media Converter is a device that allows you to connect two Ethernet ports (10/100/1000BASE-T) and one fibre port (1000BASE-X) together. It is made for tough industrial environments, with a strong aluminium case, and works well in a wide range of temperatures from -40°C to +75°C.This hardened converter supports both half-duplex and full-duplex modes, ensuring high-performance, stable network connectivity. Its strong hardware can handle tough conditions, making it great for industrial automation, transportation, and outdoor use. Installation is made easier with options to attach it to a DIN rail or a distribution box, making it useful in different situations.
Mini Industrial Media Converter Features
High-performance dual-mode Gigabit network port
• 2×RJ45 10/100/1000M auto-negotiating ports | Automatic MDI/MDI-X polarity detection | Full/half-duplex mode auto-negotiation
• 1×SC fibre Gigabit port (1000Base-X) | Stable long-distance transmission
Industrial-grade reliable design
• Wide temperature operating range: -40°C to 75°C (-40°F to 167°F) | Dust and moisture resistant | Suitable for harsh environments
• Dual mounting options: DIN rail/wall mounting | Compact and robust structure
Energy-saving and intelligent management
• IEEE 802.3az Energy Efficient Ethernet (EEE) technology | Low-power design
• Wide voltage input: 12–48 VDC power supply | Industrial power supply compatibility
Mini Industrial Media Converter Technical Indexe
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3z 1000Base-X
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SC 1000Base-X
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
SPD:
|
Ethernet Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|

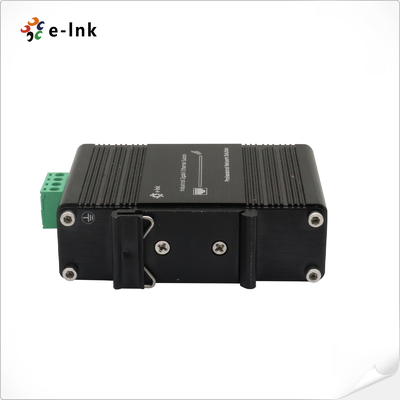

Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200G
|
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m
|
|
LNK-IMC1200G-20
|
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
|
|
LNK-IMC1200G-S20
|
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
