Industrial 10/100/1000Mbps 802.3bt PoE+ +Splitter Output Voltage 19VDC
Industrial Gigabit PoE Splitter Overview

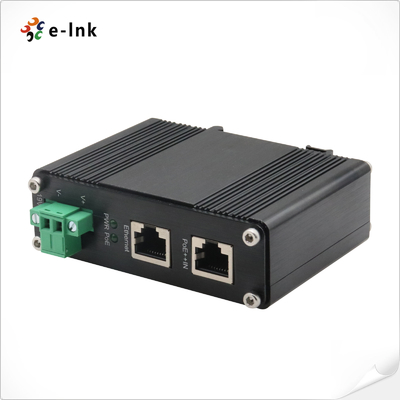

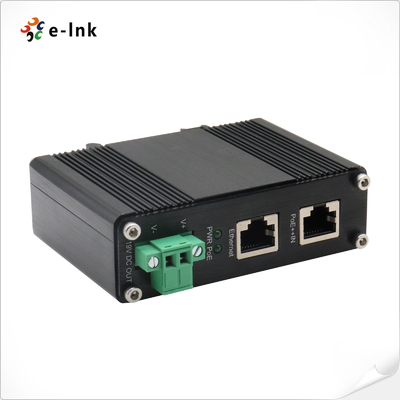

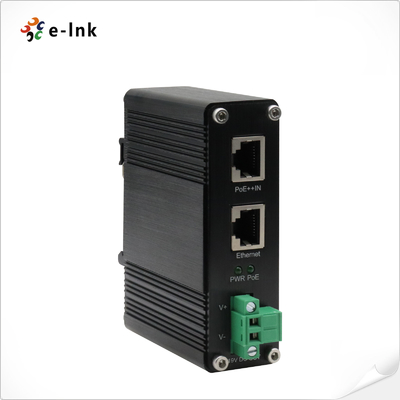

The LNK-INS901-19V series is an industrial-grade Gigabit PoE splitter designed to separate data
and power from a PoE Ethernet port, transmitting data through an RJ-45 connector and outputting
19VDC power to power non-PoE devices via a terminal block. Compliant with IEEE802.3af/at/bt standards
, this device can be connected directly to a PoE switch or used in conjunction with
the LNK-INJ-48-95W PoE injector . It offers transmission speeds up to Gigabit , supports simultaneous power
and data transmission, and has a range of up to 100 meters . The LNK-INS901-19V is plug-and-play,
requiring no configuration and offering flexible installation. It is widely used in security surveillance,
wireless access points, industrial terminals, and other scenarios, effectively reducing wiring costs
and improving deployment efficiency.
Industrial Gigabit PoE Splitter Features

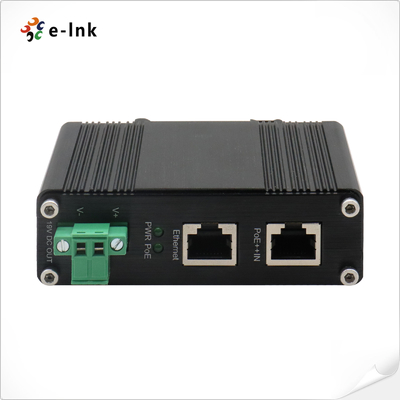

► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 19VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at/bt PoE++
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless

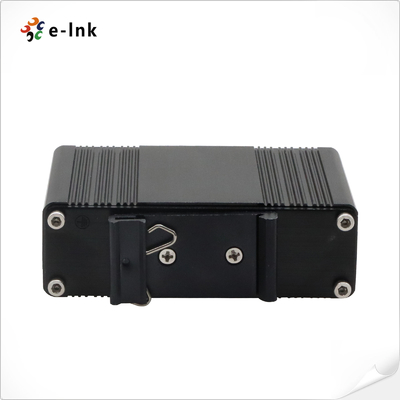

► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Industrial Gigabit PoE Splitter Technical Indexes
| Ethernet |
| Standards: |
IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3bt 4-pair Power over Ethernet |
| Processing Type: |
Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: |
1,488,000pps (1000Mbps) |
| Cabling: |
1000Base-T: Cat5 or above |
| Maximum Distance: |
Cat5 UTP up to 100m |
| Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| “Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
| DC Out Plug Connector: 1 removable 2-Pin terminal block |
| Power over Ethernet |
| PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
| Number of devices that can be powered: |
1 (19VDC)
(Vary on device’s power requirement; cannot be over 36 watts.)
|
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF: |
>200,000hrs |
| Electrical and Mechanical |
| Power Output: |
36W 19VDC (Terminal Block) |
| Power Consumption: |
41W Max. |
| LED Indicators: |
| PWR: |
19VDC Power OUT |
| POE: |
PoE Power IN |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A |
| EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500W |
| ESD: 4KV/8KV |
Industrial Gigabit PoE Splitter Dimension & Size
Ordering Information
| Model |
Description |
| LNK-INS901-19V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 36W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
