Industrial Managed 8-Port PoE+ Gigabit Switch + 2 SFP -40~80°C

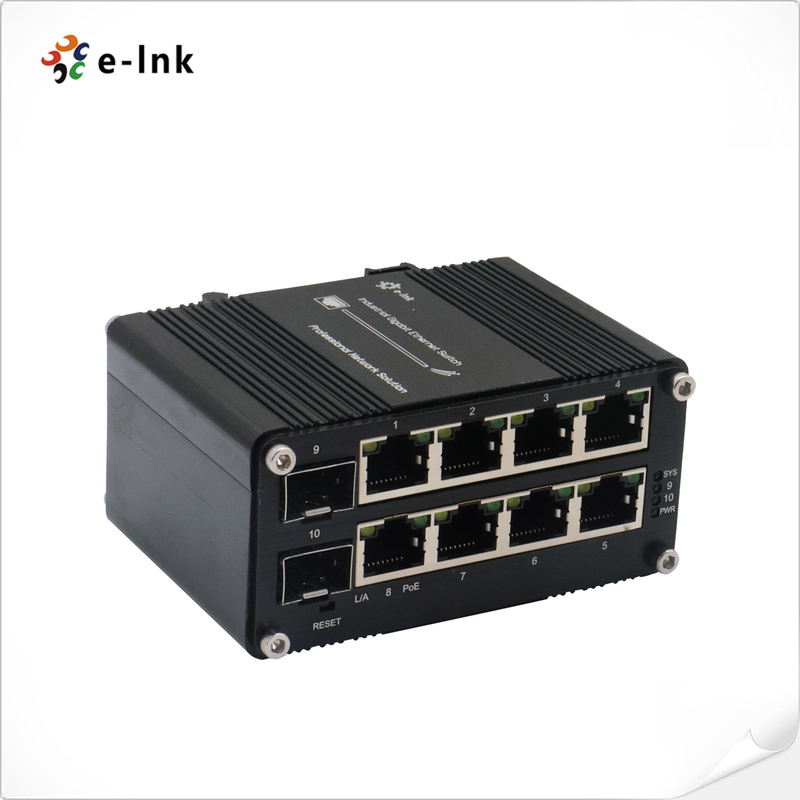

Grote Afbeelding : Industrial Managed 8-Port PoE+ Gigabit Switch + 2 SFP -40~80°C

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	E-link
Certificering:	CE, RoHS, FCC, ISO9001
Modelnummer:	Lnk-imc208sgp-SFP
Document:	1E-link Communication & Net...og.pdf

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 pc's
Prijs:	$79-$99
Verpakking Details:	Beheerde industriële PoE-switch standaard exportpakket
Delivery Time:	2-10 working days
Betalingscondities:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, creditcard
Supply Ability:	1000pcs/month

Contact

Gedetailleerde productomschrijving

Aansluiting:	8 x RJ45	Optische poort:	2 x 100/1000Base-X SFP
Bedrijfstemperatuur:	-40 ° C tot 80 ° C (-40 ° F tot 176 ° F)	Invoerkracht invoeren:	48 ~ 57VDC, redundant vermogen (4-pins terminalblok)
Dimensies (WXDXH):	95 x 63 x 46 mm	Gewicht:	300 g
Markeren:	10 Ports Industrial Network Switch , SFP Industrial Network Switch , 10/100/1000Base-TX Industrial Switch

Industrial Managed 8-Port PoE+ Gigabit Switch + 2 SFP -40~80°C
Overview
The LNK-IMC208SGP-SFP is a rugged, managed industrial Ethernet switch featuring 8 PoE+ Gigabit
ports and 2 dual-speed SFP slots. Delivering up to 240W total PoE budget, it powers IP cameras, access
points, and other devices directly through Ethernet. With robust management features, redundant power
inputs, and wide -40°C to +80°C temperature tolerance, it ensures secure, high-performance networking
in demanding industrial and outdoor applications.
Features

8× 10/100/1000Mbps RJ45 ports with IEEE 802.3af/at PoE+ (30W per port)

2× 100/1000Mbps SFP slots for flexible fiber uplink (single/multi-mode)

240W total PoE power budget, ideal for IP cameras & wireless APs

Advanced management via WEB UI, VLAN, QoS, IGMP Snooping

Redundant 48–57VDC power inputs with overload and reverse polarity protection

Wide operating temperature: -40°C to +80°C, IP40-rated aluminum case

Compact DIN-rail mount design for easy industrial deployment

20Gbps backplane capacity, jumbo frames up to 9K bytes
Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-X SFP
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
PoE:	PoE Status
Fiber:	Gigabit SFP Port: F9~F10
Dimensions (WxDxH):	95 x 63 x 46 mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP
Multicast Support	Support IGMP Snooping V1/V2/V3
VLAN	Support IEEE 802.1Q 4K VLAN
QOS	Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	WEB
Security	Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208SGP-SFP	Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

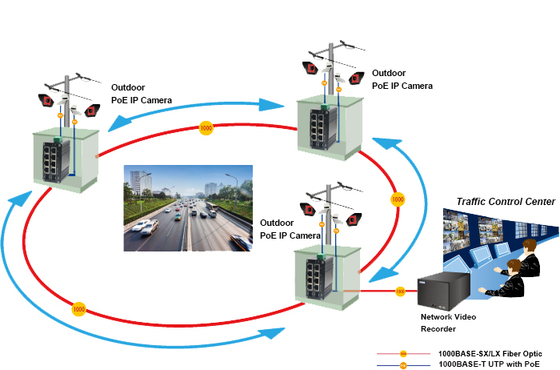

Application
Industrial Managed 8-Port PoE+ Gigabit Switch + 2 SFP -40~80°C 0
