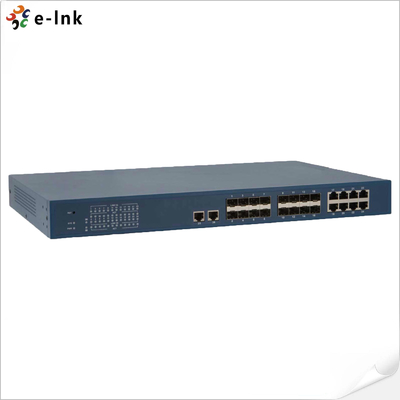

10G + 16SFP Management Gigabit Fiber Switch
10G + 16SFP Management Gigabit Fiber Switch Overview
The 16+10 Port Gigabit Managed Fibre Switch is a high-performance Layer 2/4 managed switch
designed for secure and reliable network deployment. With 16x 1000M SFP fibre ports
and 10x 10/100/1000M RJ45 copper ports, it supports wire-speed switching for maximum throughput.
Advanced security features include a built-in ARP and DoS defence system to protect
against network attacks and viruses. The switch is equipped with a range of management functions,
including QoS, STP, storm suppression, bandwidth control, IGMP snooping, ACL and DHCP snooping.
Ideal for SMEs, campus networks and metropolitan area networks (MANs), this switch provides reliability
and control in demanding environments.
10G + 16SFP Management Gigabit Fiber Switch Features
►Supports 802.1x authentication, ensuring secure user access control.
►Provides wire-speed filtering, store-and-forward switching, and a true non-blocking architecture for optimal performance.
►Features advanced management functions including port mirroring, port aggregation, and port speed limiting.
►Supports both port-based VLAN and IEEE 802.1Q VLAN for flexible network segmentation.
►Equipped with storm suppression, configurable for broadcast, multicast, and unknown unicast (DLF) traffic.
►Fully supports IEEE 802.1d Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) for enhanced network reliability.
10G + 16SFP Management Gigabit Fiber Switch Technical Indexes
|
Product Type
|
16+10 Management gigabit fiber network switches
|
|
Support agreement
|
IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
|
|
Maximum frame length
|
9216B
|
|
Ports
|
16 1000M SFP optical ports and 10 10/100/1000M RJ45 ports
|
|
Network Media
|
1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
|
|
1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
|
|
10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S
|
|
100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S
|
|
1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S
|
|
VLAN Address Table
|
4K
|
|
MAC address table
|
8K
|
|
Cache
|
32Mbits
|
|
Backplane bandwidth
|
52Gbit
|
|
Filtering and forwarding rate
|
10Mbps:14880pps
|
|
100Mbps:148800pps
|
|
1000Mbps:1488000pps
|
|
Dimensions
|
440x230x44mm(1U19-inch standard chassis)
|
|
Use of the environment
|
Operating Temperature: 0℃～40℃;
|
|
Humidity 10% ~ 90% non-condensing
|
|
Storage temperature: -20℃~70℃;
Storage Humidity 5% ~ 90% non-condensing
|
|
Power
|
Input :90-264VAC ,50-60HZ; output: 5V/12A
|
|
Power consumption
|
Power consumption: 60W
|
10G + 16SFP Management Gigabit Fiber Switch Ordering Information
|
 Item
|
Description
|
|
LNK-FS1610
|
10G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
