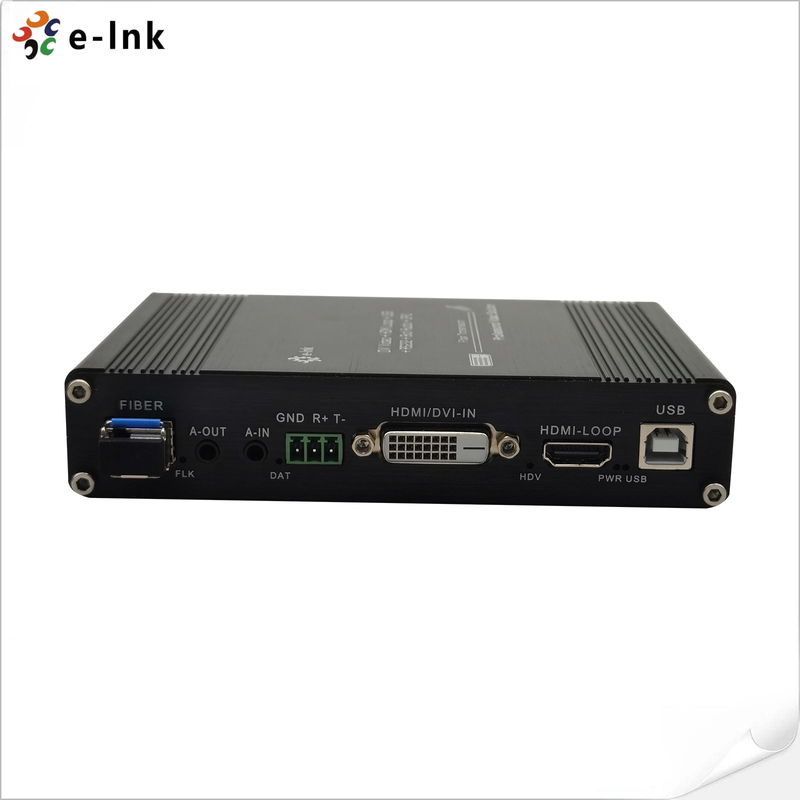

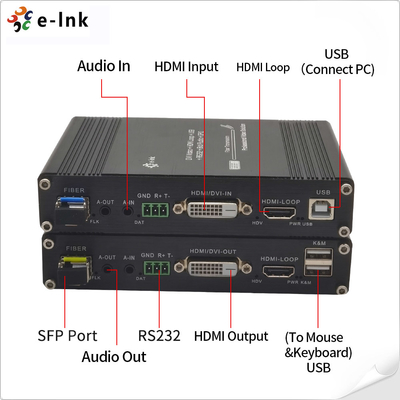

DVI KVM Fiber Extender with USB, Audio, RS232 & GPIO over Single Fiber

Grote Afbeelding : DVI KVM Fiber Extender with USB, Audio, RS232 & GPIO over Single Fiber

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	E-link
Certificering:	CE, RoHS, FCC, ISO9001
Modelnummer:	Lnk-kvm-dvi-1D1BA1GO
Document:	1E-link Communication & Net...og.pdf

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 Paar
Prijs:	$245-$265
Verpakking Details:	DIV Video naar Fiber Converter Standaard Exportpakket
Levertijd:	5-12 werkdagen
Betalingscondities:	T/T
Levering vermogen:	1000 stcs/maand

Contact

Gedetailleerde productomschrijving

video-resolutie:	Tot 1920×1200@60Hz	Transmissieafstand:	Tot 10 km over enkelmodusvezel
Videointerface:	DVI-D connector	Audio-interface:	3.5mm stereo, tweerichtings
Vezelconnector:	LC, single-mode, 1310nm	Werktemperatuur:	-5°C tot +70°C
Markeren:	USB KVM Fiber Extender , DVI KVM Fiber Extender , GPIO KVM Fiber Extender

DVI KVM Fiber Extender with USB, Audio, RS232 & GPIO over Single Fiber

Overview

This DVI KVM Fiber Optic Extender enables long-distance transmission of high-resolution

1080P DVI video, USB keyboard/mouse, RS232, bidirectional stereo audio, and GPIO

signals over a single-mode fiber cable up to 10km. With HDMI loop-out, strong compatibility,

and plug-and-play installation, it is ideal for control centers, industrial automation, broadcast

systems, and other environments requiring secure, high-quality signal extension.

Features

Transmits DVI video up to 1920×1200@60Hz over single-mode fiber up to 10km

Supports USB KVM, RS232, bidirectional stereo audio, and GPIO signal transmission

Built-in HDMI loop-out for local monitoring

Complies with DVI 1.0 and HDCP 1.2 standards

Automatic signal adjustment ensures stable and clear image quality

High compatibility with source and display devices, plug and play

Industrial-grade design with wide temperature and humidity range

Integrated ESD protection for enhanced reliability

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty

Ordering Information

Model	Description
LNK-KVM-DVI-1D1BA1GO	1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
