Super Small 3W 10/100/1000Base-T to 100/1000BASE-X SFP Ethernet Media Converter

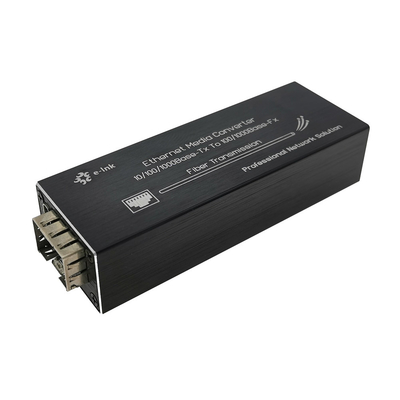

Grote Afbeelding : Super Small 3W 10/100/1000Base-T to 100/1000BASE-X SFP Ethernet Media Converter

Productdetails:

Place of Origin:	Guangdong
Merknaam:	E-link
Certificering:	CE FCC RoHS
Model Number:	LNK-M3011-SFP

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	1 pc
Prijs:	Please contact seller
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Contact

Gedetailleerde productomschrijving

Product name:	Ethernet Media Converter	Power supply:	DC 5~18V
Dimension:	78 x 27 x 18 mm	Fiber Port:	SFP - 100/1000M adaptive
Weight:	46g	Power:	3W

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

The LNK-M3011-SFP is an adaptive 10/100/1000Mbps Gigabit Ethernet media converter that seamlessly

interconnects copper and fiber networks. Compliant with IEEE 802.3, 802.3u, 802.3z, and 802.3ab

standards, it supports conversion between:

Copper (RJ-45): 10Base-T, 100Base-TX, 1000Base-T electrical signals over twisted pair.
Fiber (SFP): 100Base-FX, 1000Base-SX/LX optical signals.

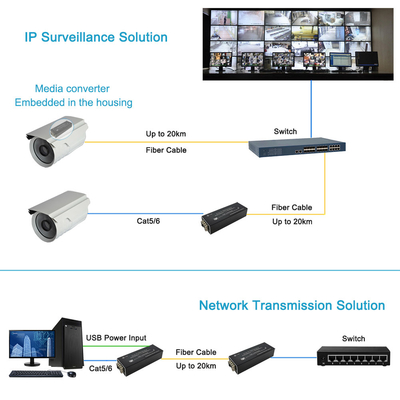

This conversion dramatically extends network transmission distances from the 100-meter limitation of

copper cabling up to a maximum of 120 kilometers over fiber optics. The converter supports operation

over multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber.
A key feature is its USB-powered operation. When plugged into a computer's USB port, the converter

automatically powers down with the computer, providing significant energy savings. This compact

design makes the LNK-M3011-SFP an ideal solution for "fiber-to-the-laptop" applications requiring

Gigabit fiber connectivity where local AC power is unavailable.

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

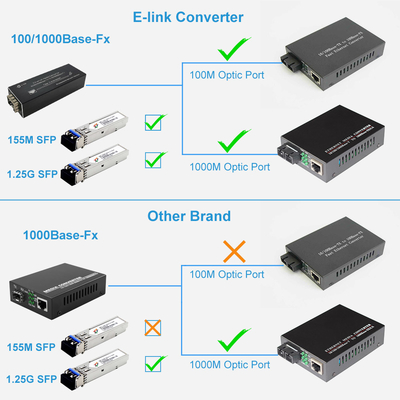

Fiber Port	SFP - 100/1000M adaptive
Wavelength	850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance	Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours

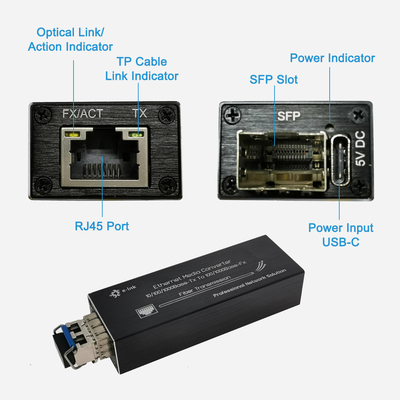

LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5V (Type-C)
Power consumption	<3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Weight	46g

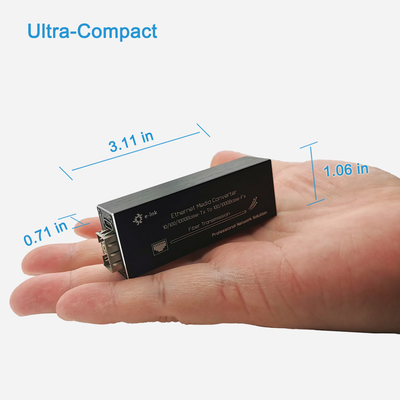

Dimensions (W x D x H)	78 x 27 x 18 mm

Ordering Information

Item	Description

LNK-M3011-SFP	Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, not including SFP module, standalone, external power adaptor
